1 Vpp Optical Angle Encoder Hollow Shaft 100mm Incremental

Name: 1 Vpp Optical Angle Encoder Hollow Shaft 100mm Incremental
Brand: SINO
Price: 1 USD

Brand Name : SINO

Model Number : AD-100MB

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : Hollow shaft Incremental Angle Encoder

Application : Swivel heads,Rotary tables,collaborative robots

Hollow Shaft Diameter : 100mm

Protec Class : IP54

Theory : Optical Angle Encoders

Line count : 36000 lines

Accuracy : +/-5

Output signal : ~1 Vpp or EIA-422A

Reference points : Single/multiple reference

Contact Now

1 Vpp Optical Angle Encoder,Hollow-shaft 100mm Incremental Encoders

Angle encoders of choice when angle measurement in accuracy of a few seconds is required.

Basic Sealed Angle Encoders architecture has three major components: integral bearing, hollow shaft and Integrated stator coupling.It encase the most delicate components of the encoder, protecting them from whatever contamination may be present (IP54 protection).The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components. The Integrated stator coupling expands the applicable range of axial installation to 0.5mm, which reduces the difficulty of processing and assembling related accessories.

ltem	Sealed Optical Angle Encoders
Brand	ACCUGLEN/SINO
Model	AD-100MB
Measuring methods	lncremental
Hollow shaft diameters	100mm
Applications	Rotary tables on machine tools Swivel heads on machine tools C-axes of lathes Measuring machines for gears High-precision industrial robotic arms/collaborative robots Telescopes
Advantages	High accuracy Simple mounting Hollow shaft diameter upto 100mm Various specifications IP54 Protection class

Sealed Incremental Angular Encoders
Model	AD-20MB	AD-35MB	AD-60MB	AD-100MB
Hollow through shaft diameters(mm)	20	35	60	100
Lines	9000,18000		18000,36000	36000
Measuring step (EIA-422A)	0.36",0.72"		0.18".0.36"	0.18”
Allow rotating speed(rpm)	≤1300		≤600	≤300
Reference point	Single reference(1)/multiple reference(20)		Single reference(1)/ multiple reference(36)	single reference(1)/ multiple reference(72)
system Accuracy	A(±1”~±3"").B(±3"~±5").C(±5"~±8")
output signal	sinusoidal voltage signals (~1 Vpp)orEIA-422A

Detail Information:

1 Vpp Optical Angle Encoder Hollow Shaft 100mm Incremental

Product Tags:

1 Vpp Optical Angle Encoder

Hollow Shaft 100mm Optical Angle Encoder

36000 Lines Optical Angle Encoder

Quality 1 Vpp Optical Angle Encoder Hollow Shaft 100mm Incremental for sale

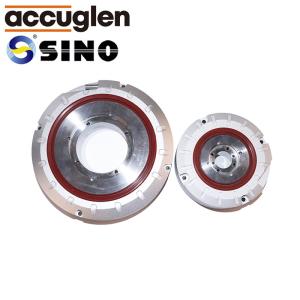

1 Vpp Optical Angle Encoder Hollow Shaft 100mm Incremental Images
