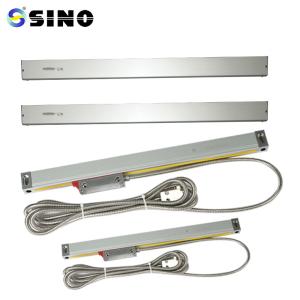

SINO KA500 Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um

Name: SINO KA500 Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um
Brand: SINO
Price: 1 USD

Quality SINO KA500 Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um for sale

Brand Name : SINO

Model Number : KA500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : SINO KA500 Optical Linear Scale

Application : Linear Encoder with Digital Readout

Usage : Scaling position sensor

Customized Length : 70mm/120mm/170mm/220mm

Length : 320mm/370mm/420mm/470mm

Material : Aluminum

Function : EDM/Lathe/Grinding/Boring Machine

Resolution : 0.5/1/5 μm

Contact Now

SINO KA500 Glass Linear Scale CNC Linear Encoder Scale for Lectura Digital 5um

Package contains:

Linear Glass Scale, KA500-470mm, 1 piece

Available Resolution: 0.5/1/5 m.

According to the requirements of the users, customized encoder lengths (L0) can be offered.(Length:70-470mm)

The reading head position of the KA500 linear scale is determined using an incremental optical encoding technique. Usually, it consists of a glass or metal scale and a read head that moves along the scale in sync with the movement of the machine part or object being measured. The graduations or marks on the scale are detected by the read head's photoelectric sensor and light source.

Model	L0	L1	L2	Model	L0	L1	L2
KA500-70	70	172	182	KA500-320	320	422	432
KA500-120	120	222	232	KA500-370	370	472	482
KA500-170	170	272	282	KA500-420	420	522	532
KA500-220	220	322	332	KA500-470	470	572	582
KA500-270	270	372	382

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

SINO KA500 Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

SINO KA500 Glass Linear Scale CNC Linear Encoder Scale For Lectura Digital 5um
